Customized 10 Points 32In Touch Panel Structure 85% Transparency

Product Categories
Sinotectronics Inc.
Contact Now

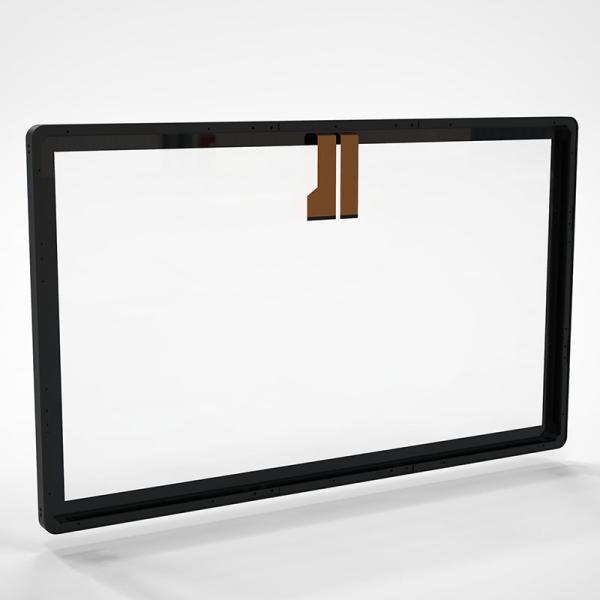

Customized 10 Points 32In Touch Panel Structure 85% Transparency

  • 1
  • 2

Brand Name : Master Touch

Model Number : MST-TPS-32-ETI

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000 pieces/Month

Delivery Time : 5-8 days

Packaging Details : carton

Controller IC : EETI3103-01

O.S. : Windows/ Android/ Linux

Touch Points : 10

Touch Technology : Pcap(projected capacitive)

Communication Interface : USB

Screen Size : 32

Viewing Area : 760.6(L)×394.1(W)mm

Cover lens O.D : 762.6(L)×457(W)mm

Contact Now

Master Touch 10 Touch Points Customized 32 Inch Touch Panel Structure

1. Product Description

Master Touch Touch Panel+Structure is to glue the structural parts whose size is the same as the TP's outline dimension and the TP with silicone or two-component glue, so that the two are firmly bonded together. Doing so can increase the overall strength and thus protect the TP to a certain extent.

2. Genaral Specification

2.1 Basic Features

Item Feature Remarks
Controller EETI3103-01
Channel TX: - RX:- -
Power 5V USB: 4.7V ~ 6.0V, Typical:5V
Communication USB USB: 2.0 Full Speed
Touch points 10 -
O.S. Windows/ Android/ Linux plug and play
Power Consumption

1.Active Mode: Max.120mA @ USB Input 5V

2.Idle Mode: 90mA @ USB Input 5V

3.Sleep Mode: less than 1mA @ USB Input 5V

2.2 Mechanical Features

Item Specification Unit
Screen Size 32 Inch
Viewing Area 760.6(L)×394.1(W) mm
Cover lens O.D 762.6(L)×457(W) mm
2.3 Optical Spec.
Item

Content
V.A. Transparency

≧85%

3. Sensor Spec.

Item Thickness Unit
Stacked structure Cover 4.0 mm
SCA 0.25
ITO 1.1
Sensor Glass
ITO
Sensor Dimension OD Size X 718.3
Y 416.3

4. Electrical Spec.

Item Type Value Unit Remarks
Operating Temperature - -20 ~ +80 ℃

Humidity

20%~85% RH
Storage Temperature - -30 ~ +80 ℃

Humidity

20%~85% RH
ESD Requirement ESD air requirement ±8 KV Air
ESD contact requirement ±6 KV Touch

5. Test

Item Specification Result
Cover lens Ball Drop 200g ± 2g
35cm

One drop test on each of the 5 selected points, No damage
Hardness Pencil: 6H
Pressure: 1N/45°		 Hardness ≧ 6H
Warpage By Gauge Warpage 0.1% ≦ Length *
FPC/COF Bending Bending range0-180° 30times
Electrical Function ok		 -

6. Drawing

Customized 10 Points 32In Touch Panel Structure 85% Transparency

7. Details

Customized 10 Points 32In Touch Panel Structure 85% Transparency

8. FAQ

Customized 10 Points 32In Touch Panel Structure 85% Transparency
